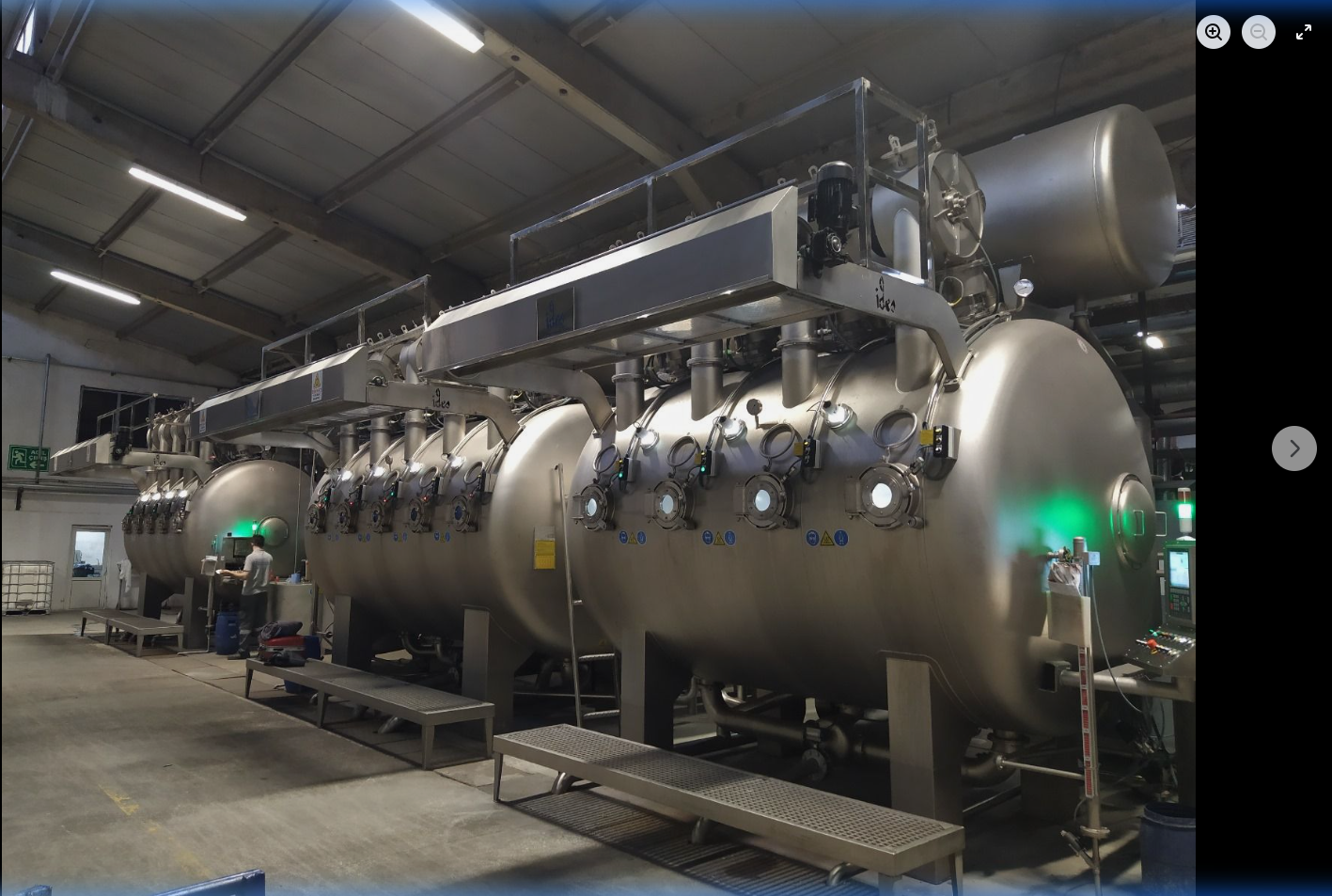

The H.T. Multi-Plus Fabric Dyeing Machine, manufactured by IDES MACHINE, is a high-performance textile machine capable of dyeing fabrics seamlessly from the lightest to the heaviest grammage. Prioritizing water conservation, this machine dyes all kinds of natural and synthetic fabrics with the lowest liquor ratio.
Request Quote →
Provides maximum efficiency with minimum water and energy usage. Works with 1/4–1/5 liquor ratio for dry fabrics and 1/2–1/3 for wet fabrics, helping you reach your sustainability goals.
Bearings used in the towers are manufactured as stainless precision investment castings. Double bearings, ball bearings, and high-performance seals are used in each tower to guarantee a leakage-free lifecycle.
Highly secure locking system actuated with a pneumatic valve and pressure system inside the machine. Ensures a safe and leak-free working environment for the operators.
The nozzle body is made of stainless precision investment casting and offers an operating range of 2–14 mm, which adapts perfectly to every fabric thickness and weight type.
With optimized internal design and fluid dynamics, fabric cycles and chemical processing times are greatly shortened, boosting your plant productivity.
Based on testing with 100% Cotton Fabrics:
| Feature | Light Colors | Medium Colors | Dark Colors |
|---|---|---|---|
| Water Consumption (l/kg) | 18 – 22 | 22 – 26 | 26 – 32 |
| Steam Consumption (kg/kg) | 1.2 – 1.7 | 1.4 – 2.0 | 2.0 – 2.4 |
| Electricity Consumption (kW/kg) | 0.17 – 0.21 | 0.21 – 0.25 | 0.25 – 0.31 |
| Process Time (hours) | 4:30 – 5:30 | 5:30 – 6:30 | 6:30 – 8:00 |
